Introduction:
BIGTREETECH MINI 12864 V1.0 LCD Display Screen Mini12864 Smart Display 3D Printer Parts BTT SKR Pro SKR V1.4 MKS Board VORON 2.4
$325.89
Sale price
$325.89
Regular price
Introduction:
BIGTREETECH Mini12864 screen board is a medium-sized, RGB-backed 3D printing machine display board launched by shenzhen Big Tree Technology Co., Ltd. 3D printing team.
Mini12864 V2.0 Feature :
1.Communicate with the motherboard via EXP1 and EXP2;
2.RGB backlight, so cool;
3.Designed with the FPC connector to allow customers to choose their preferred
connection way.
If you need other resources for this product,please visithttps: //github.com/bigtreetech/

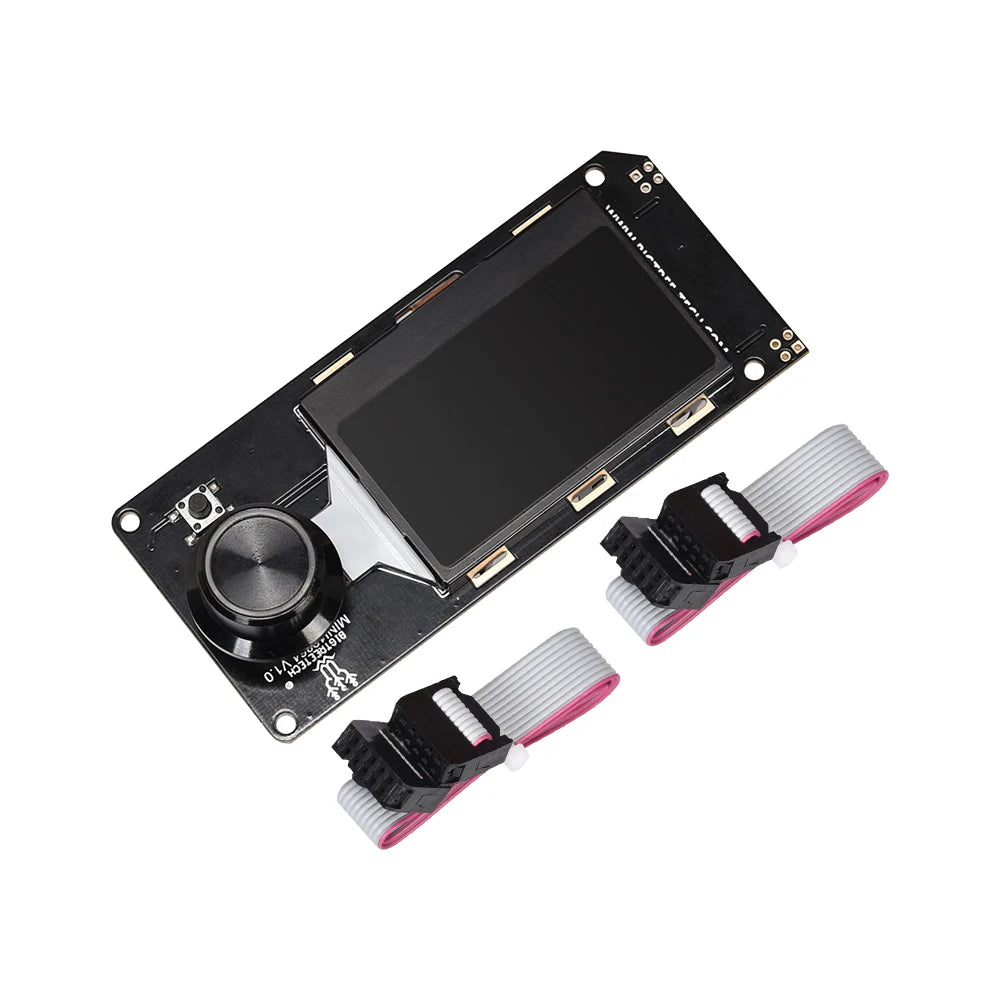

1PC Mini12864 V2.0 (New updates and upgrades based on mini 12864 v1.0)
BIGTREETECH Mini12864 V1.0
Product specification
Dimensions
Wiring diagram
1PC Mini12864 V2.0 (New updates and upgrades based on mini 12864 v1.0)BIGTREETECH Mini12864 V1.0Product specificationDimensionsWiring diagram
Notes:

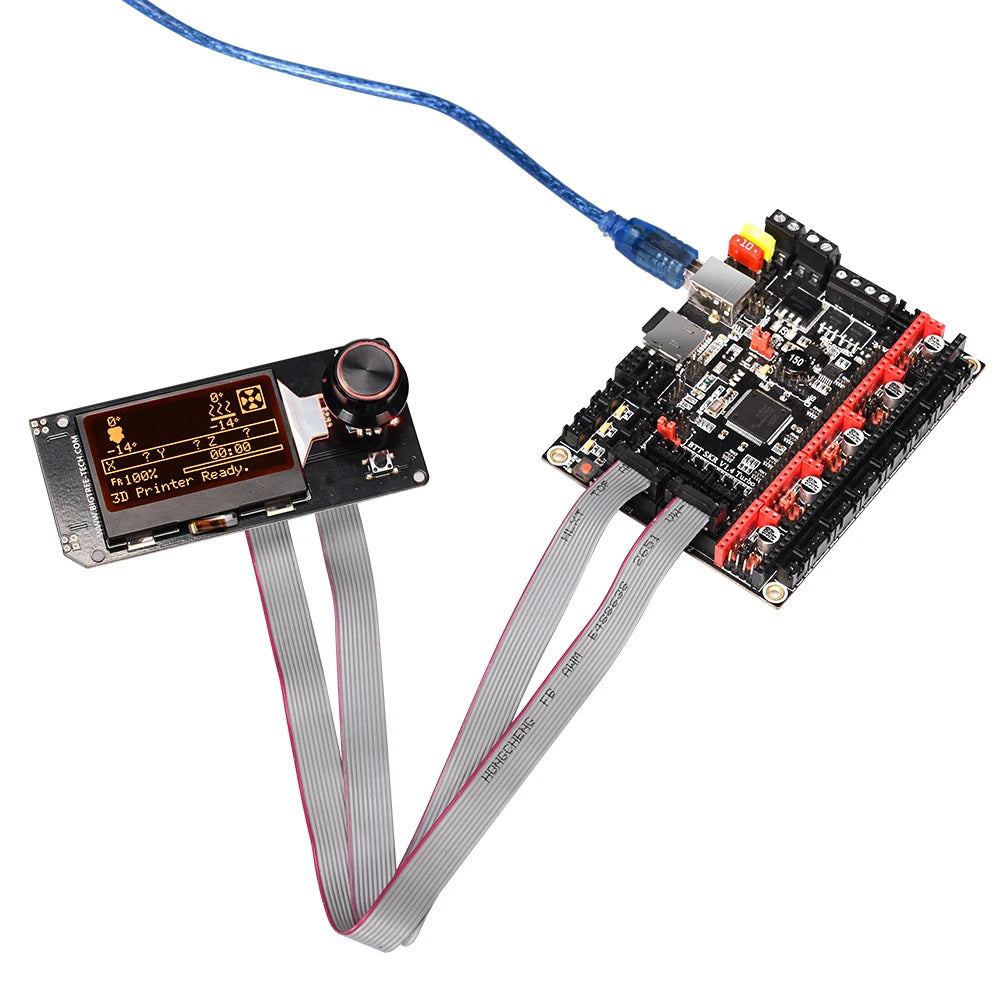

1.Same as LCD 12864, it connects with EXP1 and EXP 2 ofthe motherboard.
2.The backlight can be set with its interface.

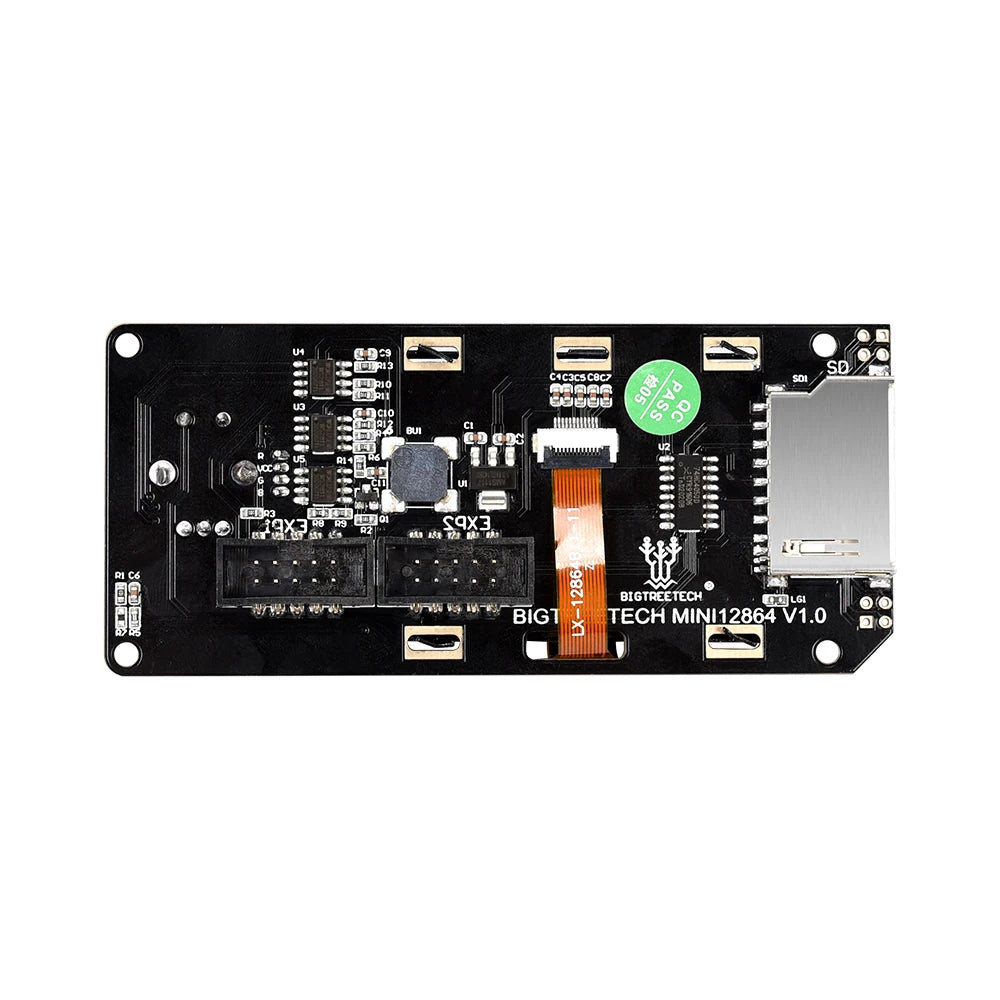

Mini12864 V1.0 includes EXP1 and EXP2that serve as the LCD display interfaceofordinary motherboard.

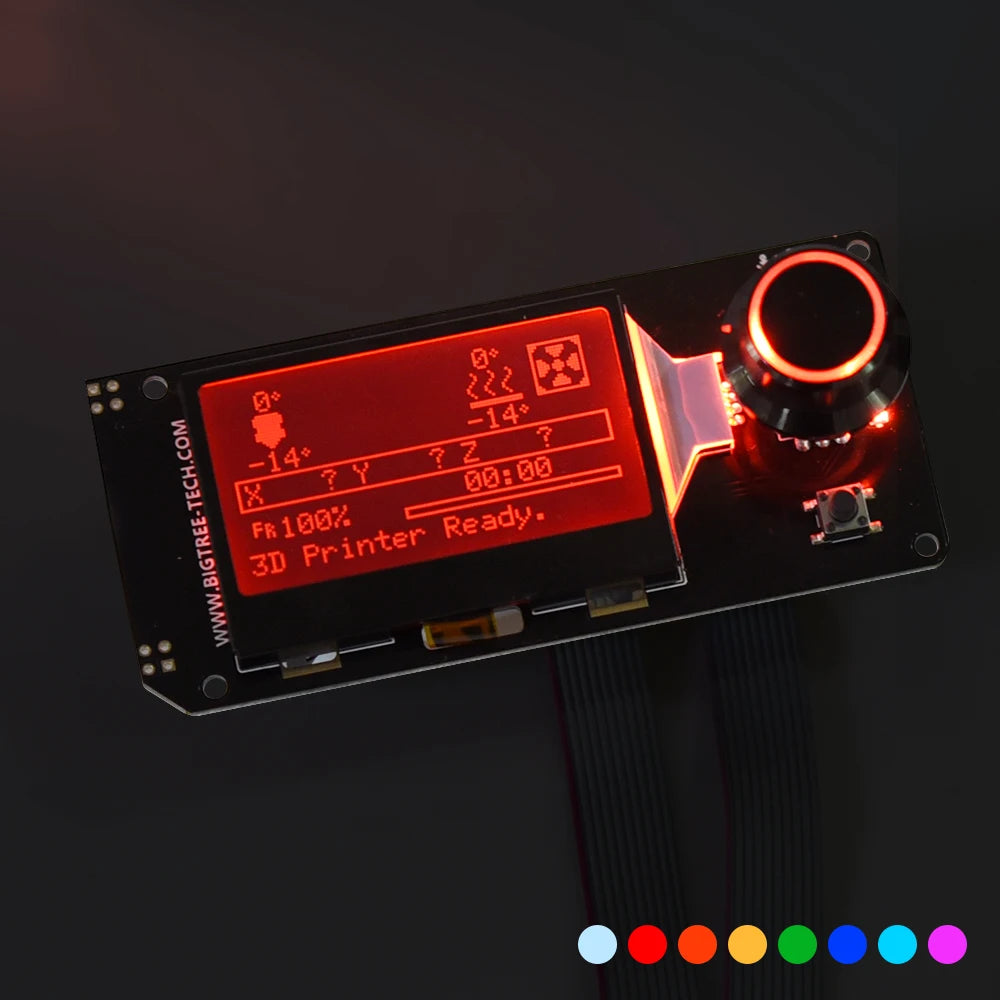

It features multicolored RGB backlightmaking it look cooler.
How to Use
Mini12864 V1.0 includes EXP1 and EXP2that serve as the LCD display interfaceofordinary motherboard.It features multicolored RGB backlightmaking it look cooler.How to Use
1.Power on, and then press rotary encoder
2. Choose Lights
3.Then press a new Lights: you can decidewhether the RGB is on or not.
4.RGB display can be set with Light Presets
Product display

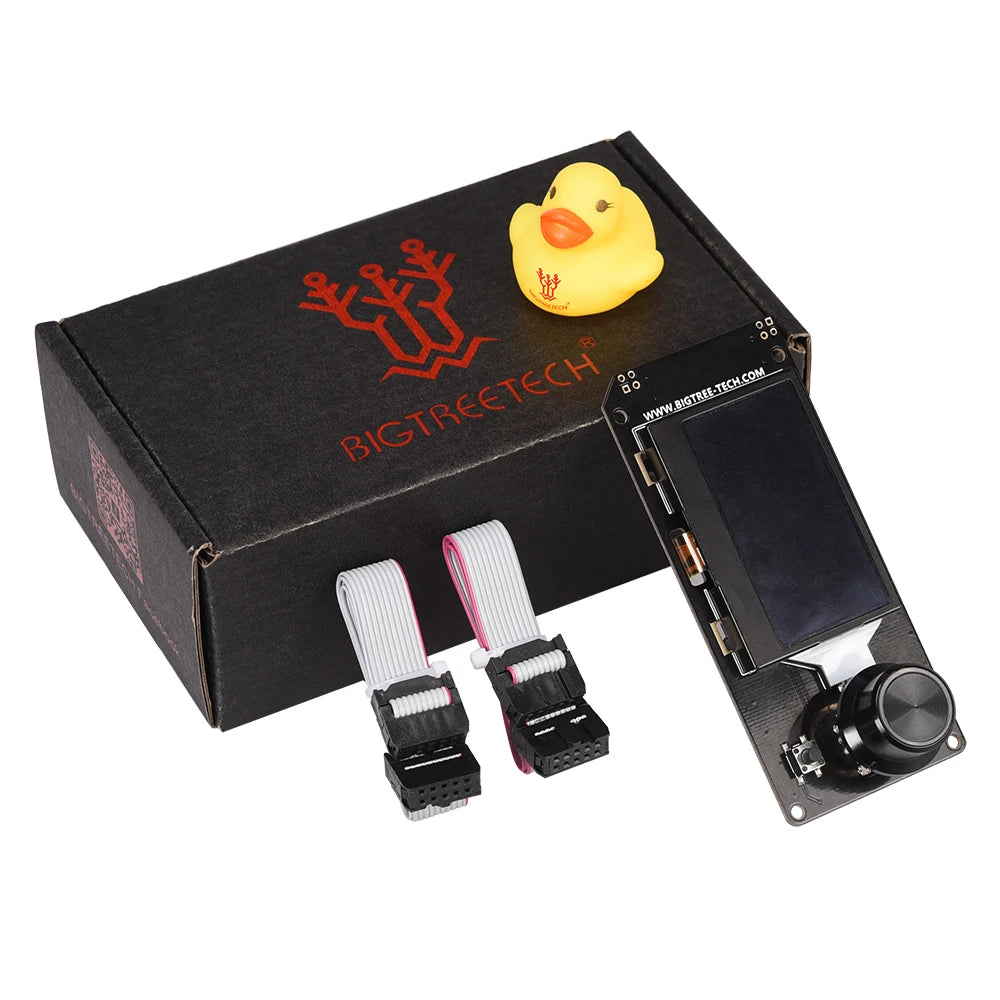

What' s in the box?
Product displayWhat' s in the box?
